Lion Track icon Lion Den » Please mouse over the menu bar above

Chemistry Models

A&P 1

Bohr models

Helium

Bohr model of the helium (He) atom.  He has two protons in the nucleus and two electrons in its single energy level.

From http://course1.winona.edu/sberg/Free.htm



periodic chart

This (partial) periodic chart shows incomplete Bohr models (no nucleus). Here, the energy levels are called "shells."

From http://course1.winona.edu/sberg/Free.htm



Electron Cloud Model

helium electron cloud animation

The electron cloud model shows electrons moving in a cloud around the nucleus.

From http://course1.winona.edu/sberg/Free.htm

hydrogen electron cloud animation

In this covalent bond, two H atoms "share" their single electrons, to form a pair of shared electrons.

From http://course1.winona.edu/sberg/Free.htm



Water Molecule

water models

Three models of a water molecule (polar). From left: stick (structural) model, Bohr model, space-filling (cloud) model.

From http://course1.winona.edu/sberg/Free.htm



Molecules in Water (Solution)

glucose in solution

In this space-filling model, glucose (center molecule) is a polar molecule with unequal sharing of electrons.  It dissolves easily in water because the positive regions of a water molecule are attracted to glucose's negative regions and the negative regions of a water molecule are attracted to glucose's positive regions --so they "get along." The dashed lines represent hydrogen bonds, which which are weak electrochemical attractions that form and reform in a liquid solution.

From http://course1.winona.edu/sberg/Free.htm



sodium in waterchloride in water

Ions, too, "get along" with water just fine!

Click on each image to enlarge

From http://course1.winona.edu/sberg/Free.htm

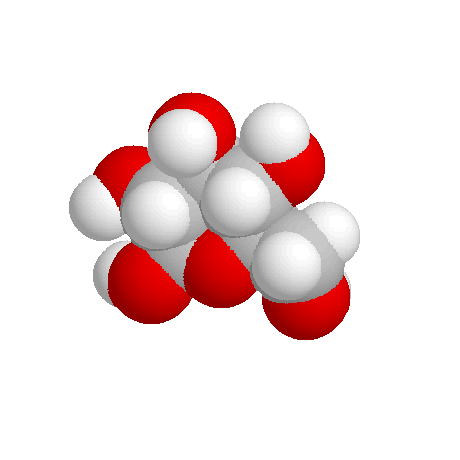

Glucose Molecule

glucose structural  modelglucose space filling model

Two models of a glucose molecule: structural and space-filling.

From http://course1.winona.edu/sberg/Free.htm



Phospholipid Molecules

phospholipid structural modelphospholipid simple model

Left: Structural model of a phospholipid

Right: Stick figure of a phospholipid

From http://course1.winona.edu/sberg/Free.htm



phospholipid bilayer

Phospholipid bilayer (a simple model)

From http://course1.winona.edu/sberg/Free.htm

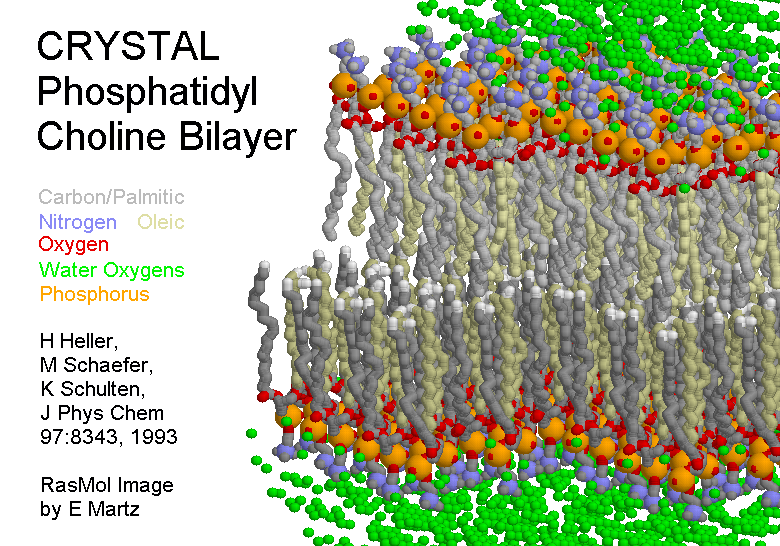

modern bilayer model

Phospholipid bilayer (a current detailed model)

Click image to enlarge



Cholesterol Molecule

cholesterol structural model

Cholesterol (its steroid "core" or nucleus is highlighted)



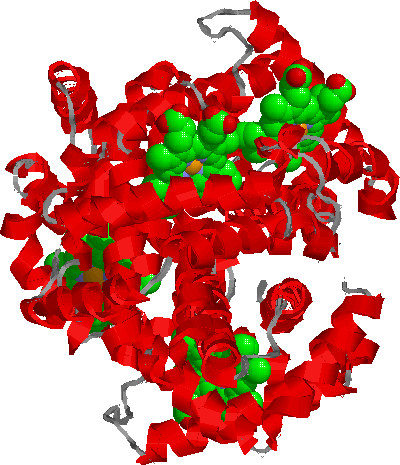

Tertiary Protein

hemoglobin beta chain (tertiary protein)

Computer (ribbon) model of a tertiary protein (hemoglobin beta unit)

Click image to enlarge

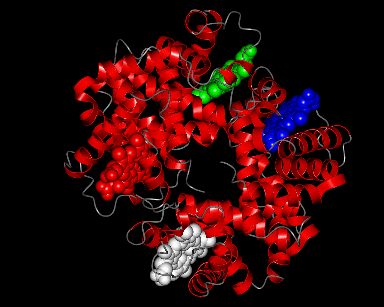

Quaternary Protein

Hemoglobin quaternary protein (tetramer)

Computer (ribbon) model of a quaternary protein (hemoglobin)

 Check out this odd-shaped protein: click here

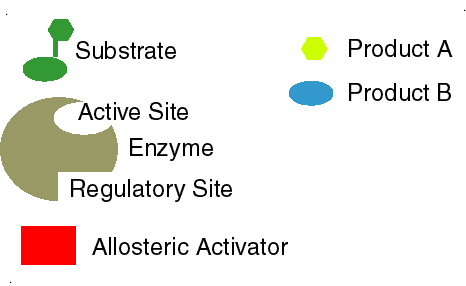

Allosteric Effect

allosteric effect animation

The allosteric effect in enzyme action.

From http://course1.winona.edu/sberg/Free.htm



DNA Molecule

DNA structural model

DNA molecule (left) is made up of nucleotides. Each DNA nucleotide is a sugar (deoxyribose), phosphate, and a base (A, C, T, or G).

adenine structural model

Adenine, represented as simply "A" in the DNA model above, actually looks something like this.

DNA rotating animation

Animated, simplified space-filling model of DNA shows the "twisted ladder" shape of the double helix.

From http://www.animationfactory.com

ATP Molecule

ATP structural model

ATP (adenine triphosphate) is a modified adenine-containing nucleotide. (see model of adenine above)
